Description

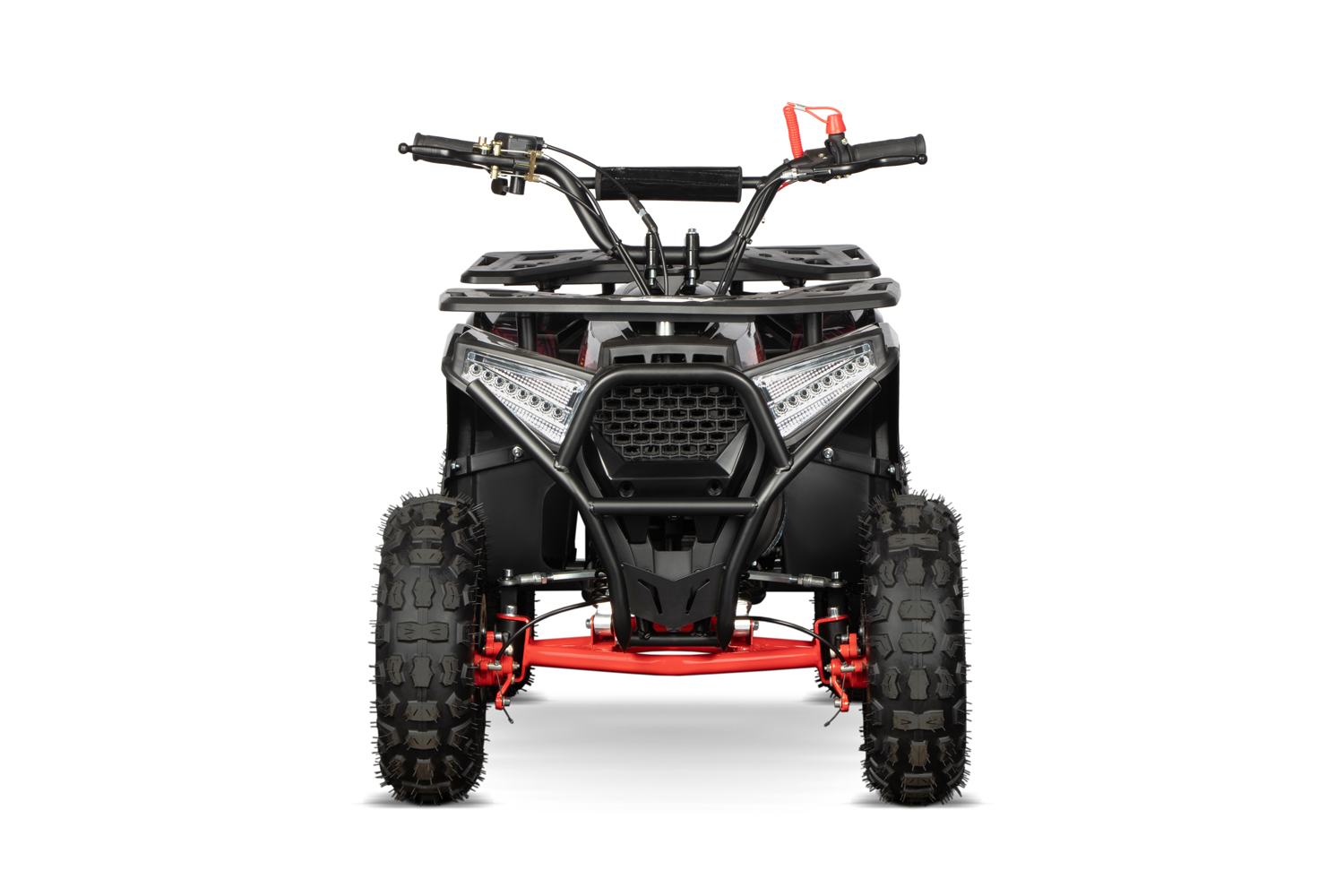

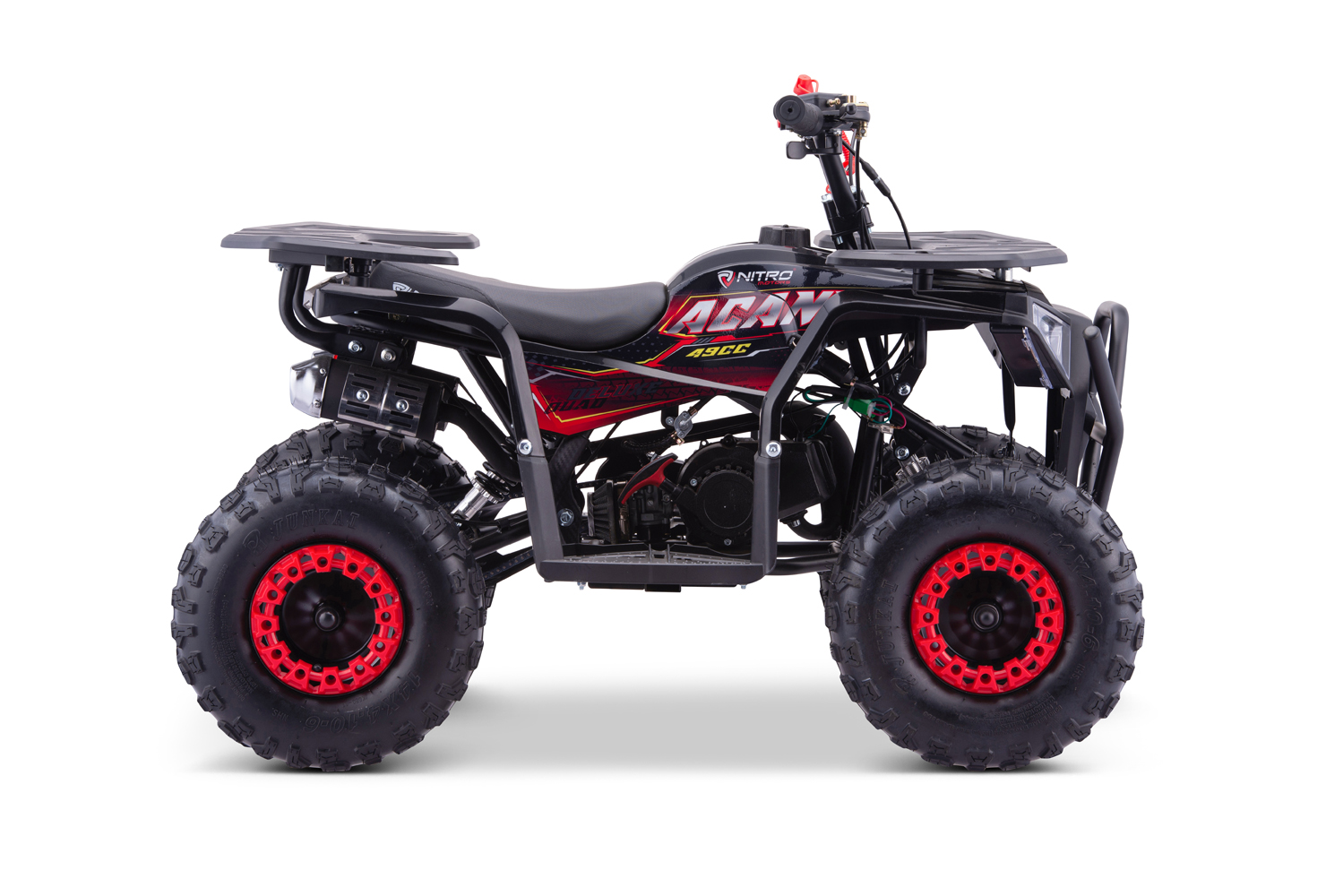

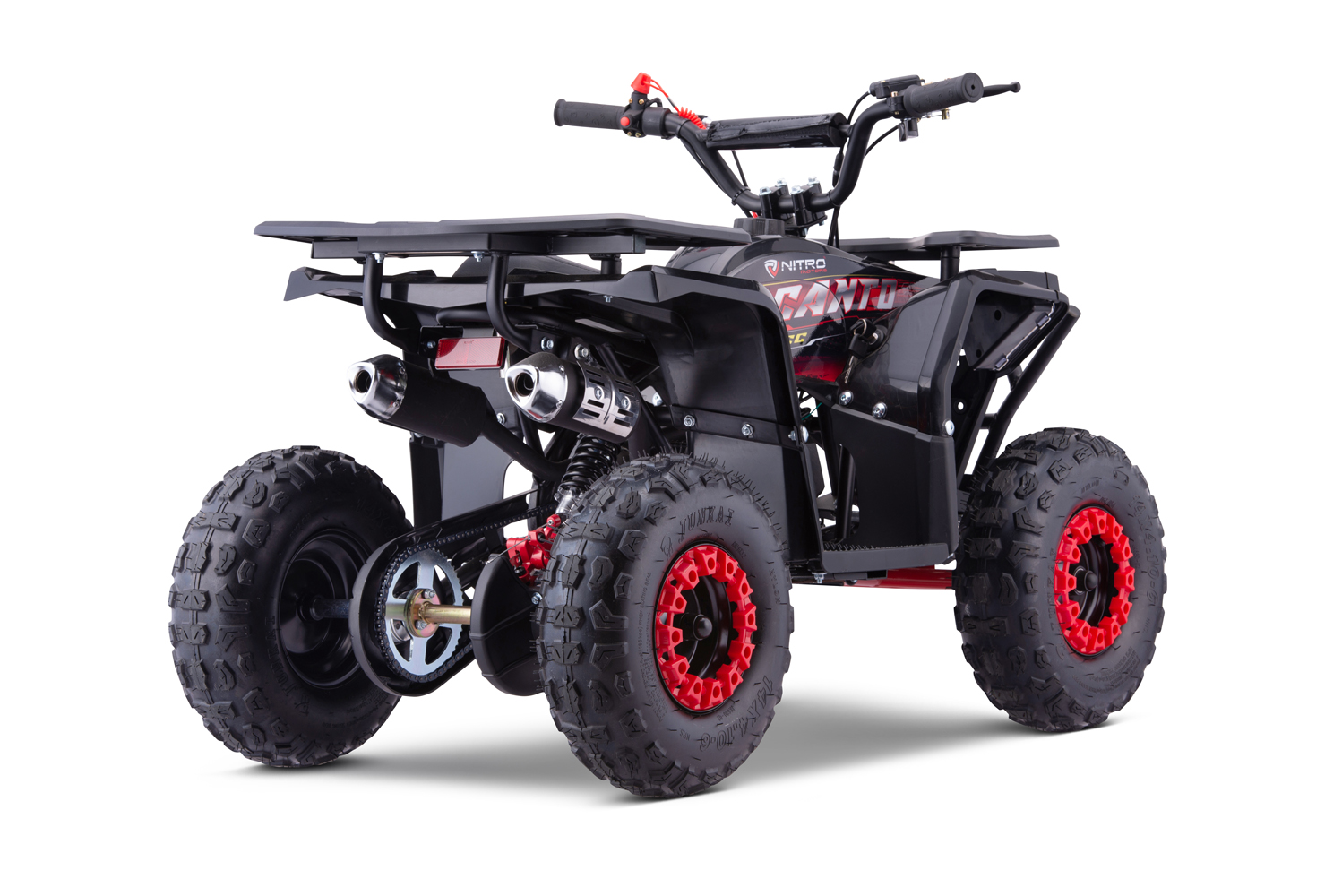

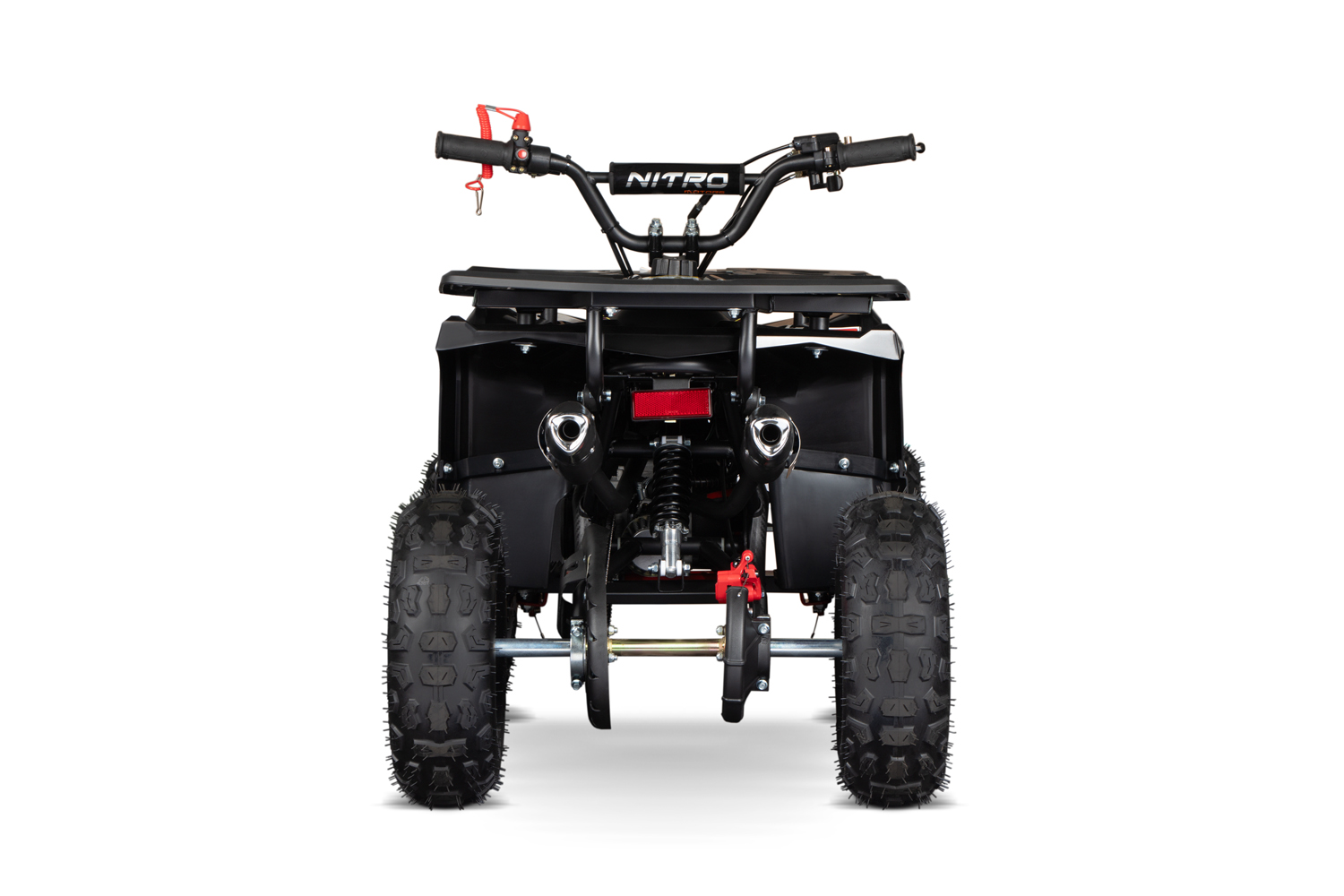

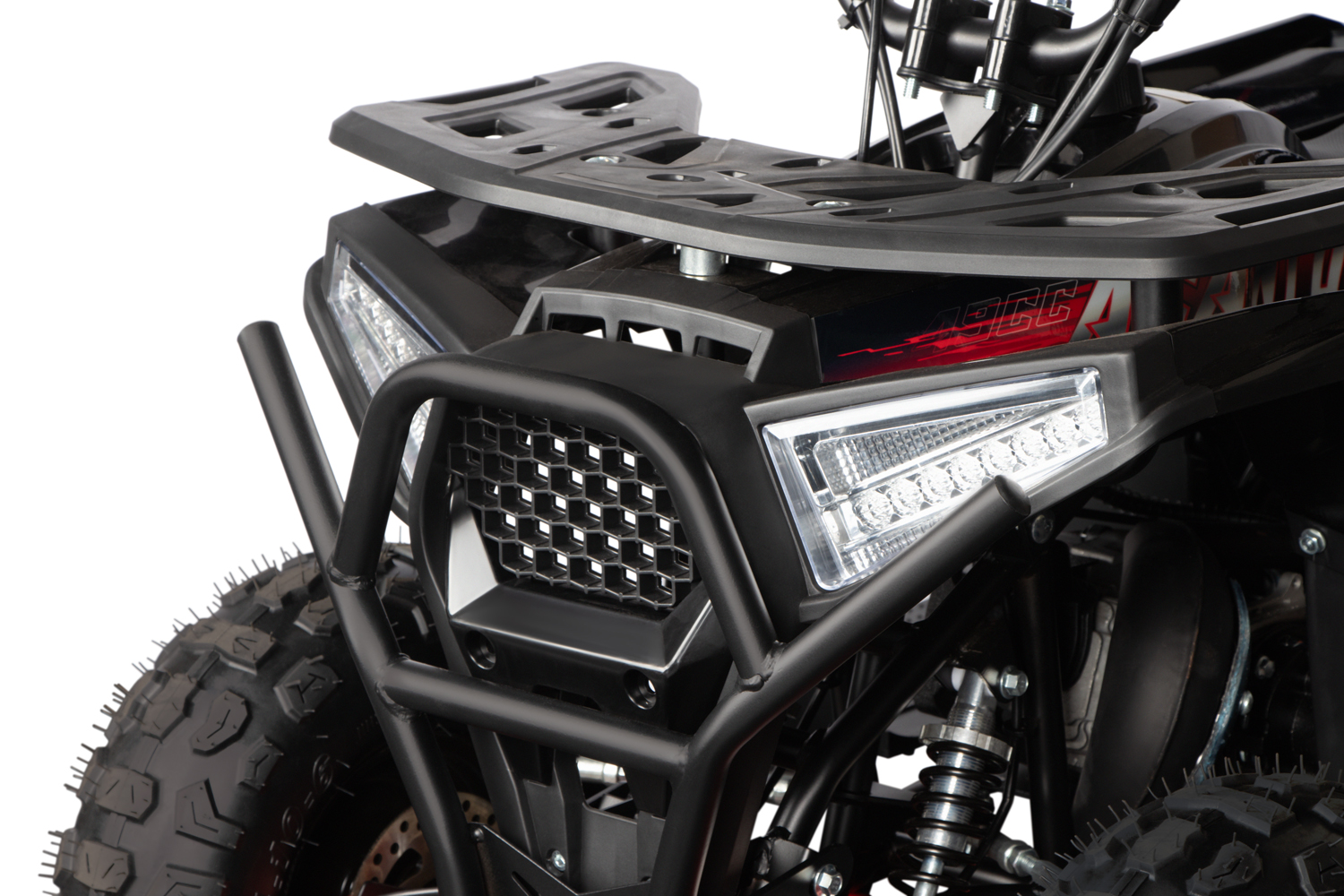

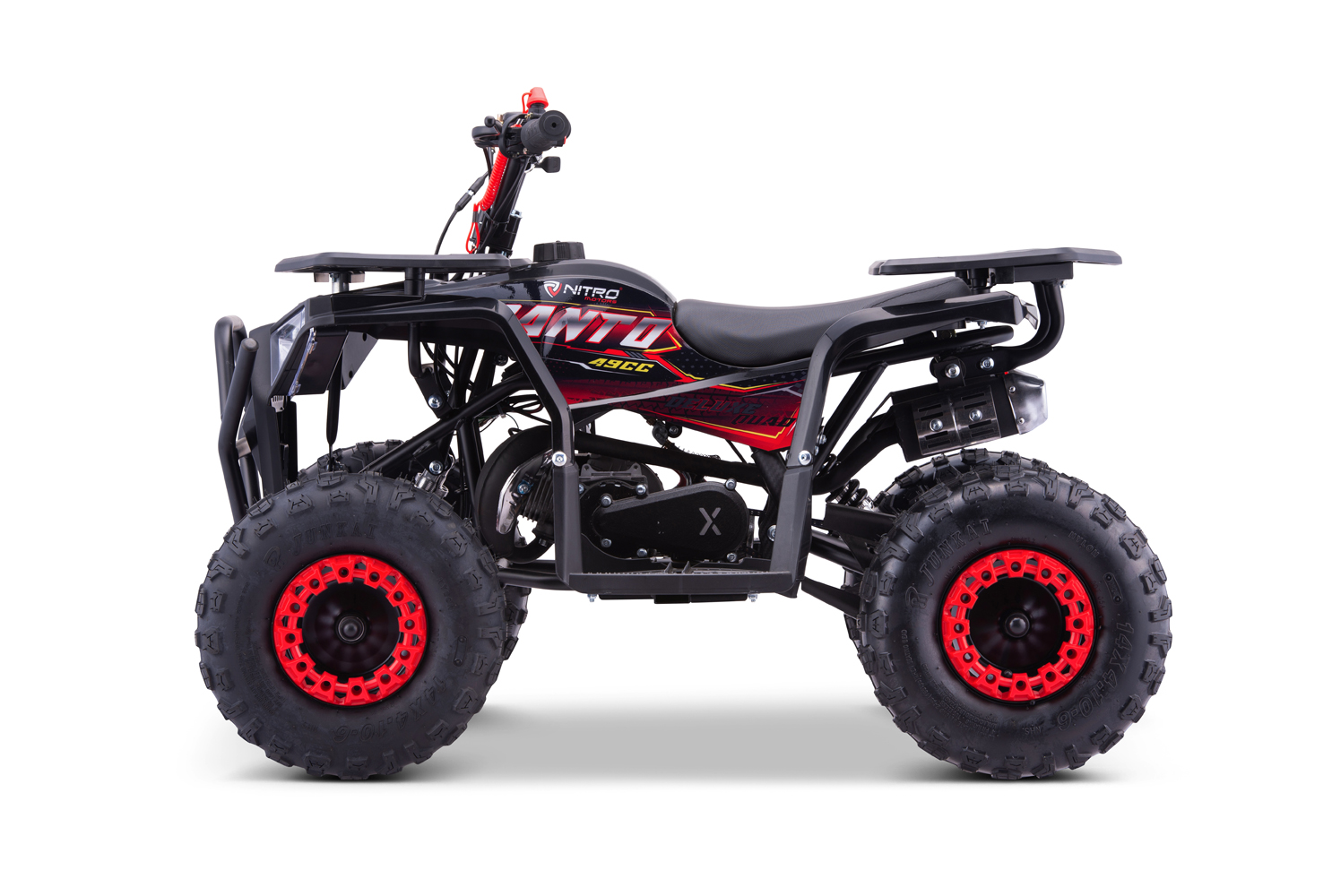

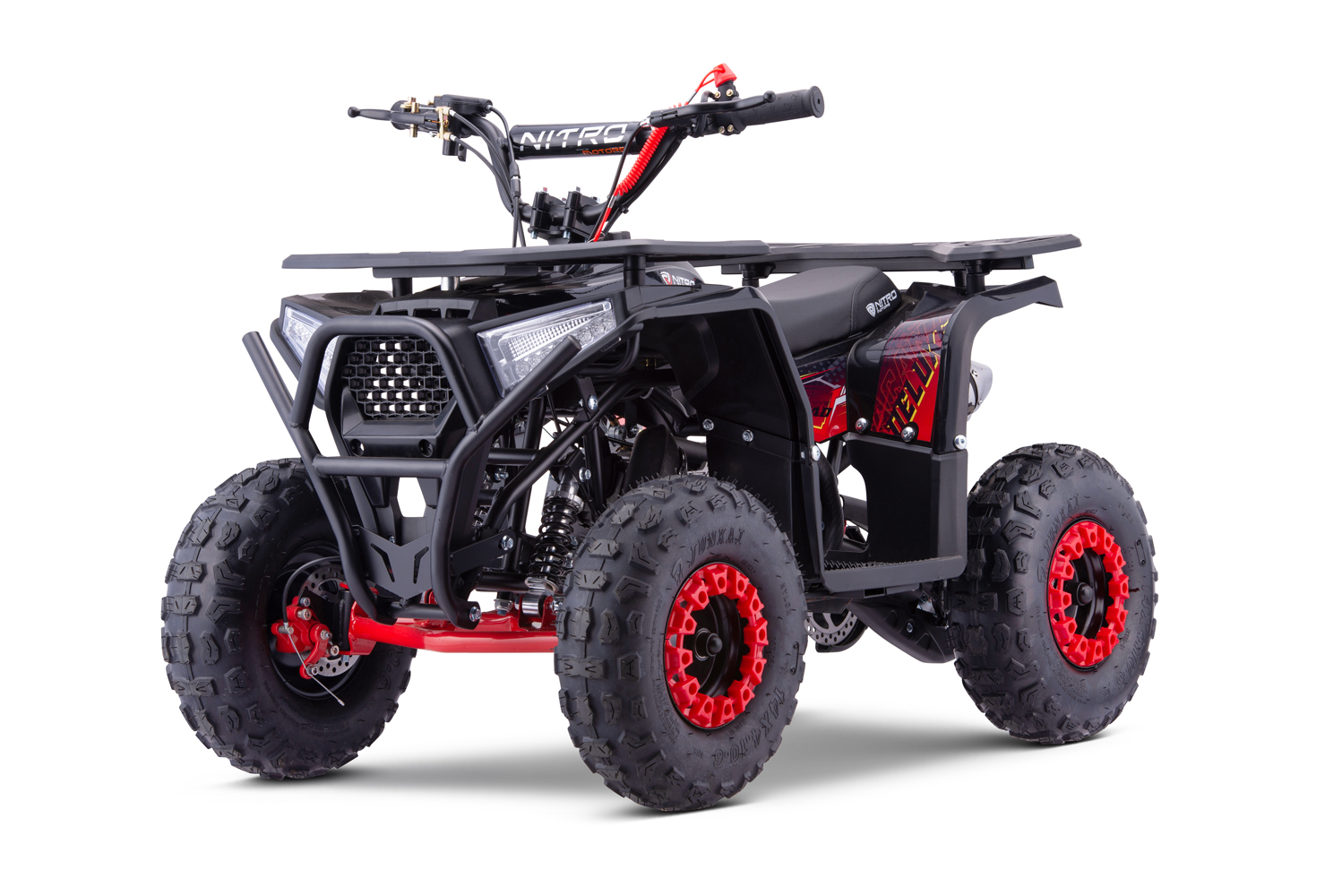

49cc Mini Kids Quad Acanto BTF Tire XL DLX 6

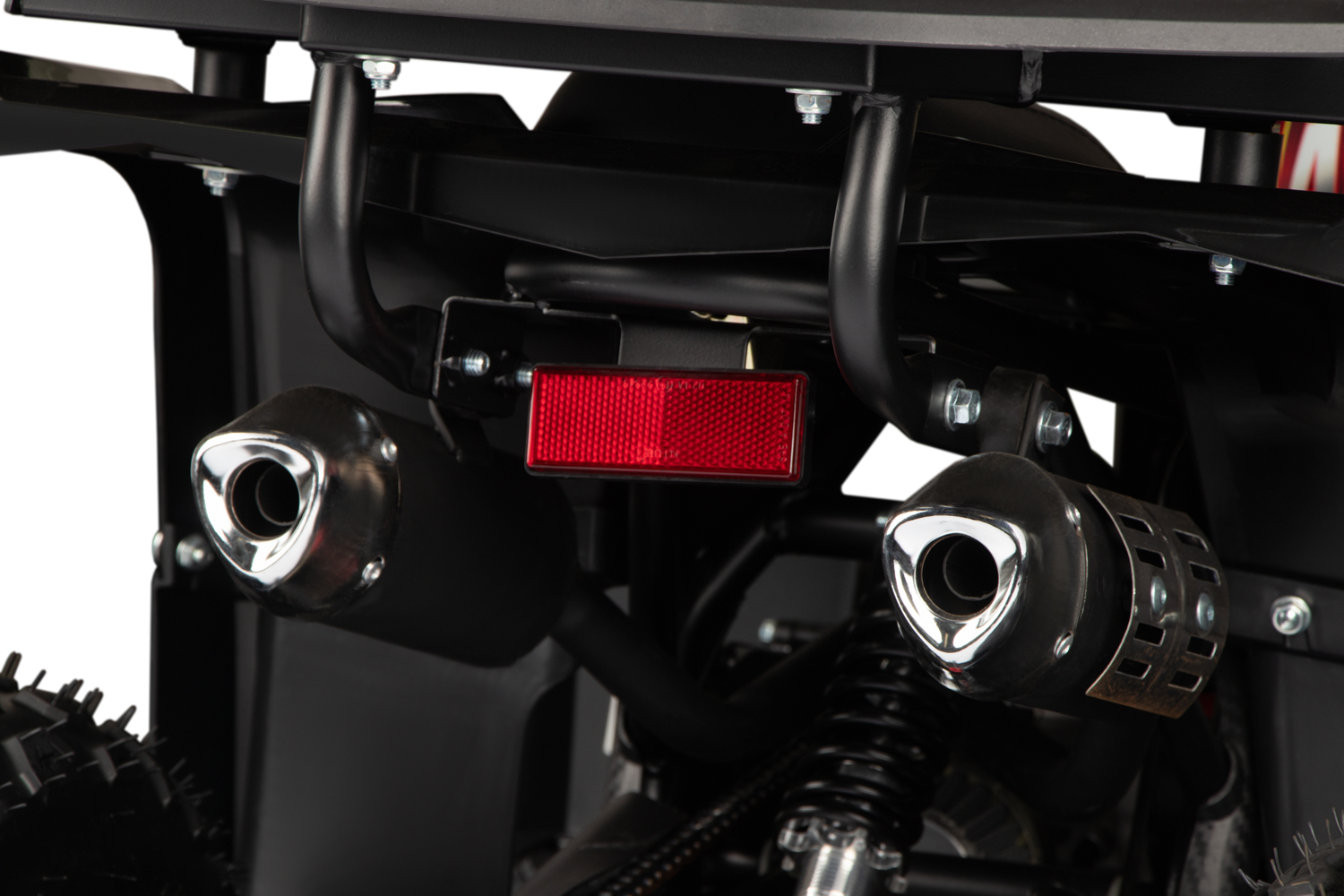

Alu Soft Easy Pull Starter | Tuning Carburetor | Dual Sport Exhaust
Features:
– 49cc 2-stroke engine
– Automatic transmission with reduction gearbox
– High-quality 6-inch BTF XL
tires – Front and rear luggage
racks – Beadlock rims
– Painted frame
– 6-inch tires
– Emergency stop lanyard
– Large footboard
– Ignition lock with 2 keys
– Semi-enclosed chain guard
– Emergency stop lanyard
Technical data:
| Data designation | Manufacturer’s specifications |
| Motor | 49cc 2-stroke engine |
| cooling | air-cooled |
| Performance | 1.8kW |
| V-Max | up to 40km/h |
| transmission | Automatic transmission with 13T/64T reduction gearbox |
| drive | T8F chain |
| ignition | Alu Easy Starter |
| Tank capacity | 1 liter |
| fuel | 1:25 gasoline-oil mixture |
| battery | – |

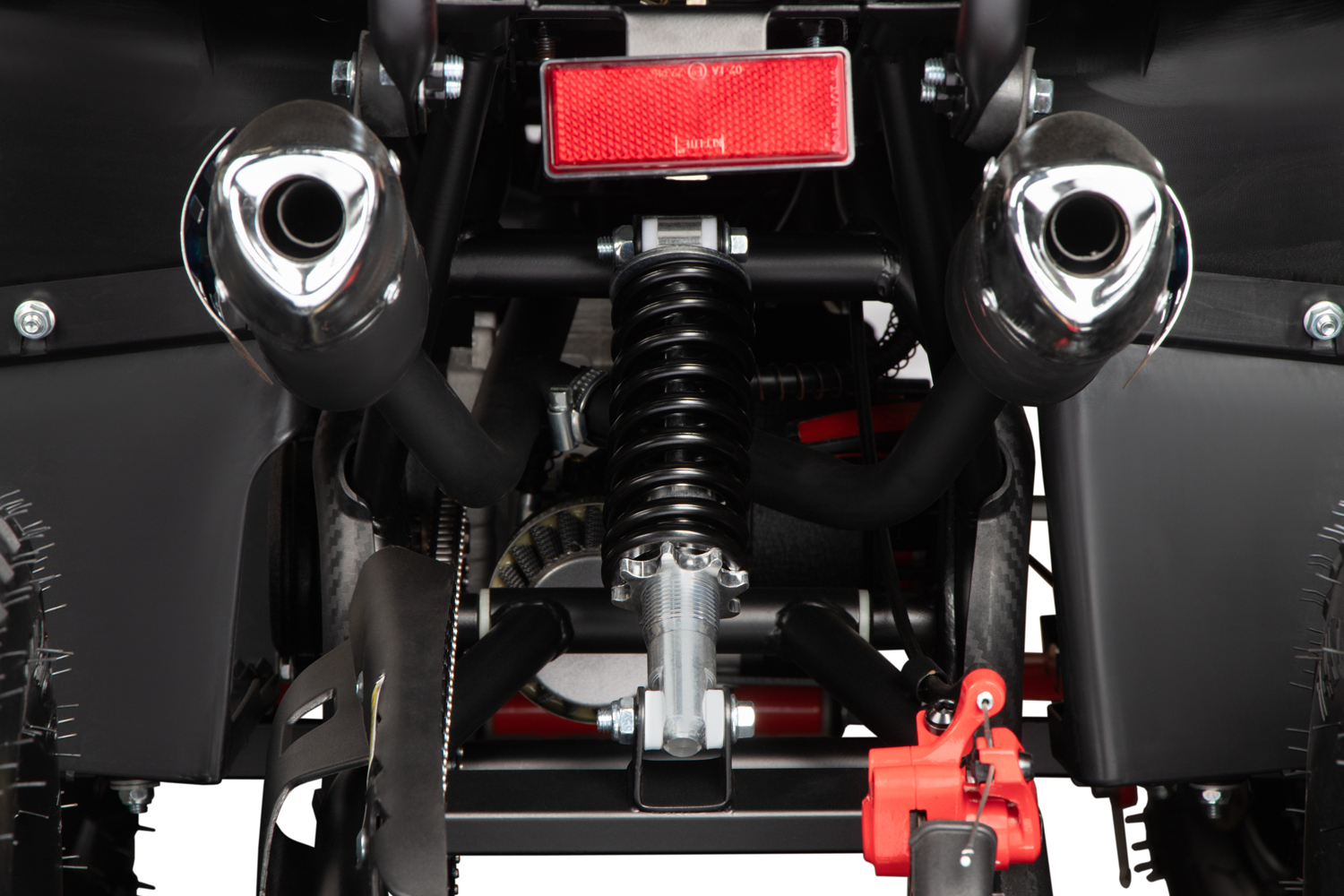

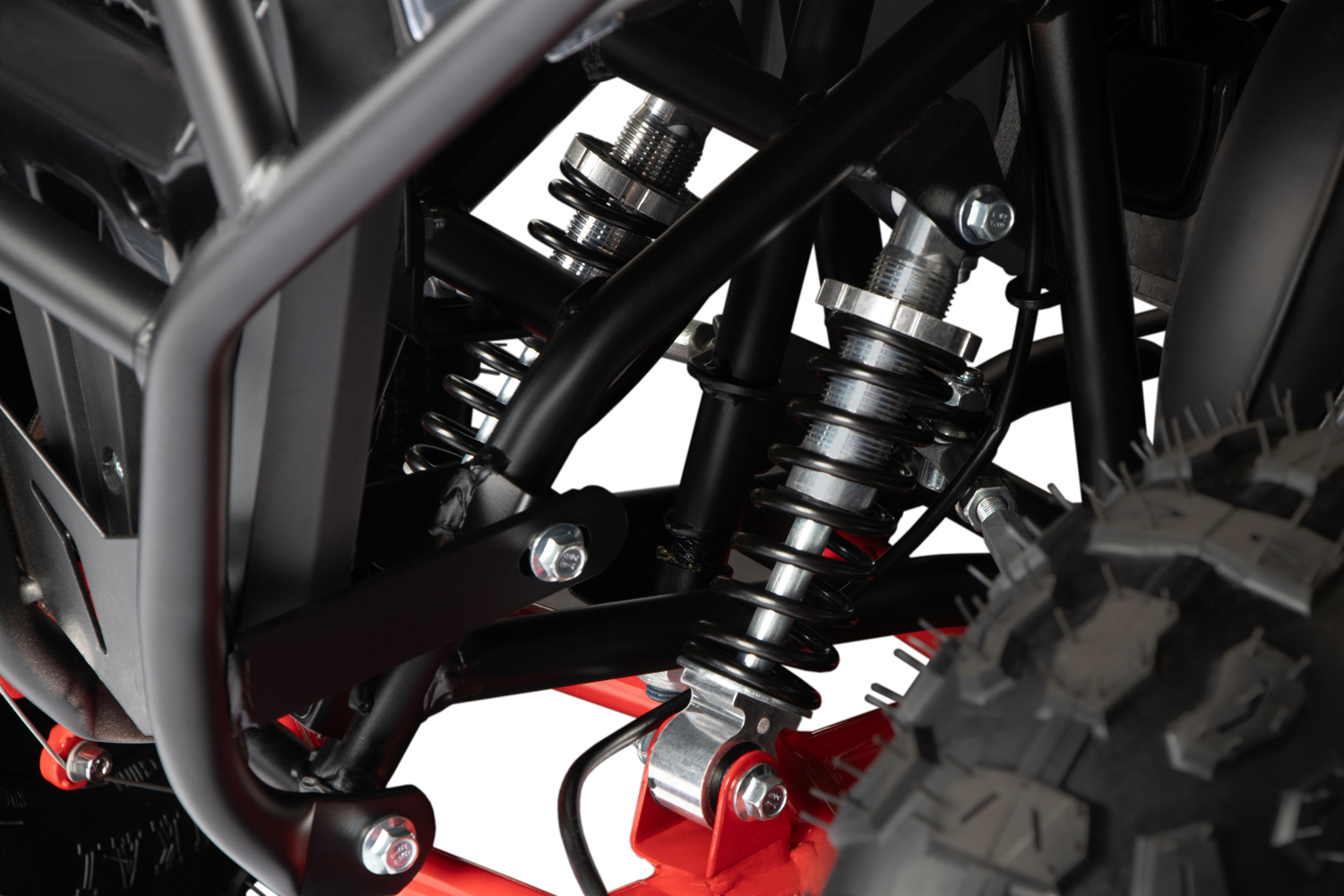

| Front | rear suspension | 2x adjustable aluminum shock absorbers | Aluminum shock absorber |

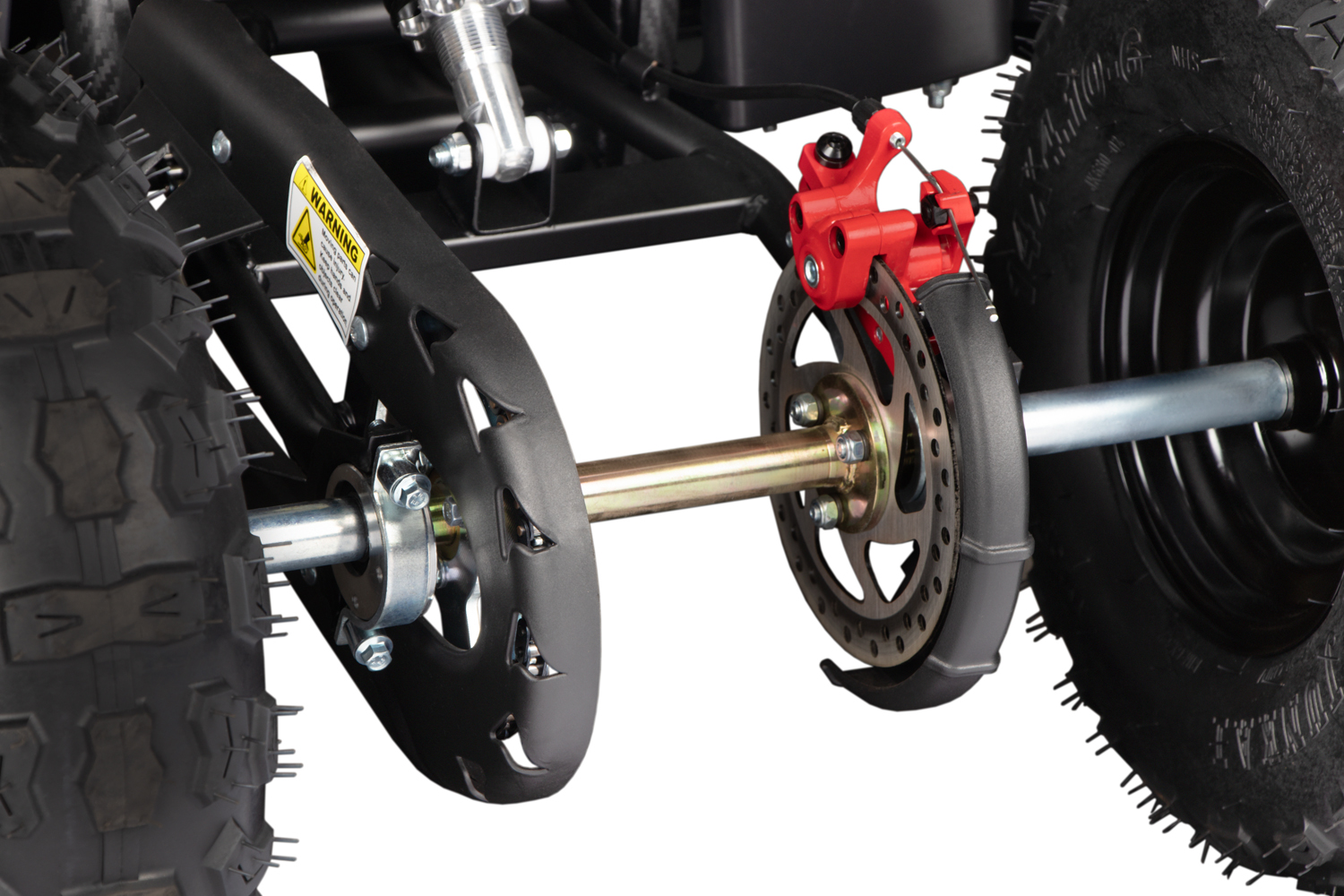

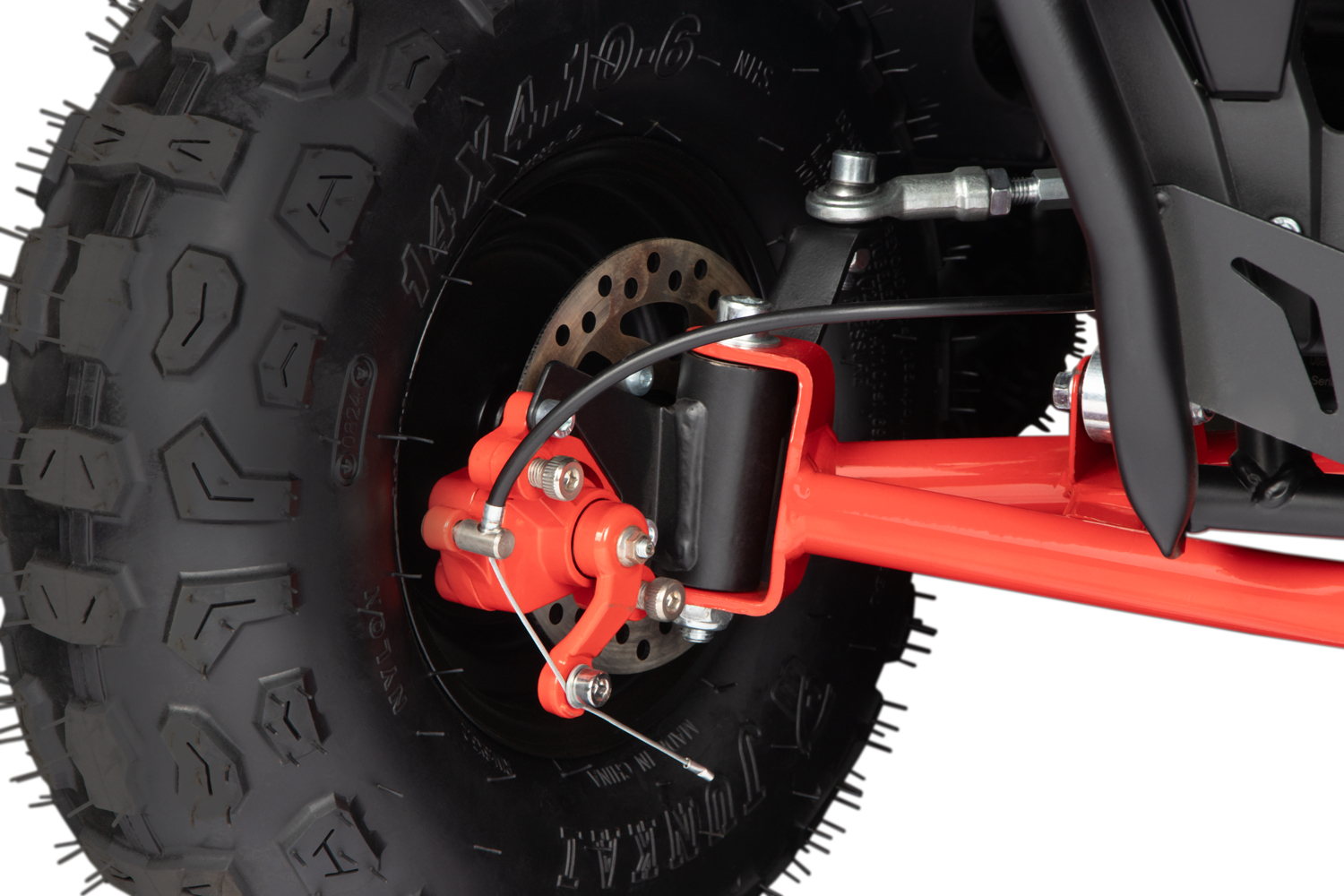

| Front brakes | rear brakes | 2x disc brakes | 1x rear disc brake |
| front tire | rear tire | 14×4.10-6 | 14×4.10-6 |
| Net vehicle weight | 39 kg |
| Gross vehicle weight | 52 kg |
| load capacity | 60 kg |
| Vehicle dimensions in mm | |
| L x W x H | 1070x630x750 |
| Seat height from the ground | 510 |
| Distance foot-seat | 300 |
| Ground clearance | 190 |
| Track gauge vu h | 635 | 600 |
| axle spacing | 725 |
| Handlebar width | 590 |
